60mm RGB Cabochons

60mm RGB Fairground Lights - DMX512 - 24v

£6.25 - £6.25
£6.25
£6.25 - £6.25
£6.25

Suitable Applications:

Use standard RGB or DMX controllers to easily control the colours and fading/flashing effects.
No complicated programming required.

  • Style/Size: 60mm dia
  • Voltage: 24v
  • Wattage: 3.6w p/light
  • Lumens:

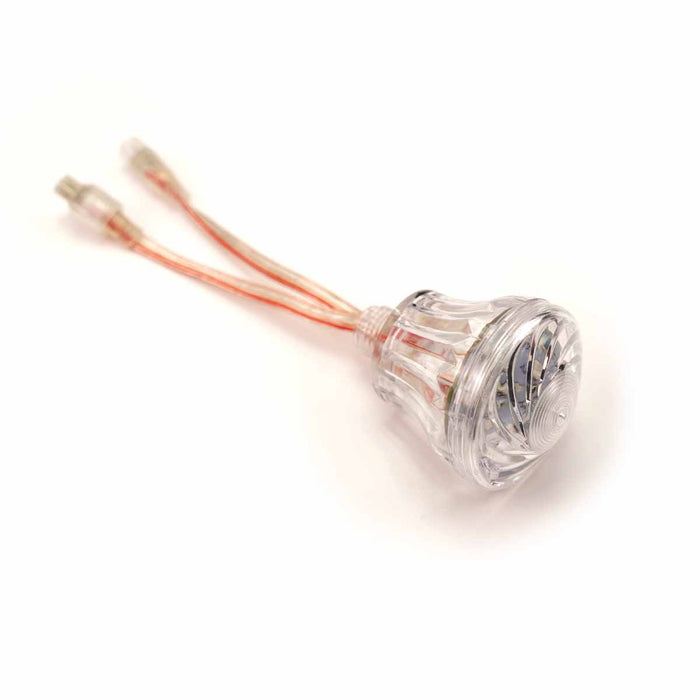

Our 60mm RGB cabochons are comprised of the Acrylic lens & base, LED light, lampholder and moulded 4 pin cables. These DMX512 cabochons are easy to set up and integrate with standard DMX controllers, offering precise control without requiring new or extensive programming knowledge.

Each cabochon comprises 18led diodes and is designed to be used with the K-8000C DMX Decoder aswell as most other DMX512 controllers.

These cabochons operate on the DMX512 protocol, allowing individual addressing for precise control and the ability to create unique effects for each light.

Perfect for use inside and outside.

Sold individually.

Want them in kit form? Let us know your requirements and we'll see what we can do! Please contact us at sales@weloveleds.co.uk


  • Cabochon Cap & Base
  • LED Bulb
  • Fixing nut
  • Lampholder with moulded cables

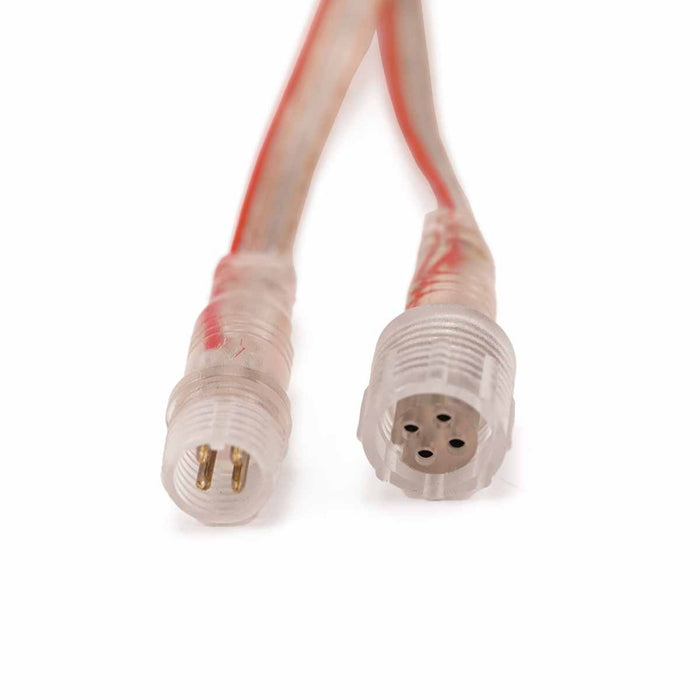

Each unit comes with two 100mm leads exiting out of the back with one male and female 4 pin connector.

The lights can be spaced 100-200mm apart.

Drill a 19-22mm hole wherever you want to position a light. Pass the light through hole from front to back and secure with a supplied fixing nut. Then use the cables to easily connect to each other.

  • Power: 1-3.6w per led bulb
  • LED Qty in each cabochon: 18 SMD5050
  • DMX control: 512 - 4pin
  • Material: Methachrylate
  • Max thickness of material for the lampholder to push through is 15mm.
  • Apx 25mm clearance required on the backside of the material for the wiring and lampholder nut if they are being fit inside a trough letter for example.

Download - K-8000C & RGB DMX Cabochon Wiring
