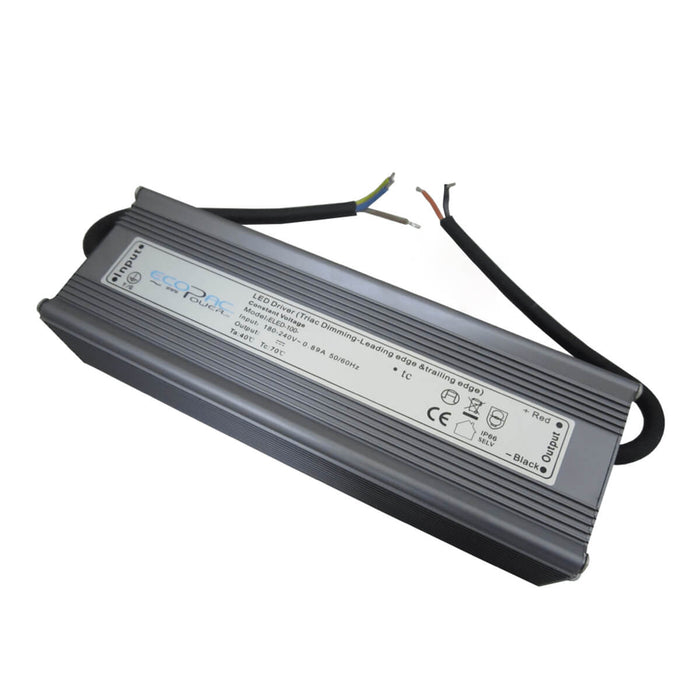

100w 12v PSU Triac Dimmable PSU WeLoveLeds
SKU TRIAC-100-12

ELED-100-12T | 100w | 12v | 8A | Ecopac Triac PSU

  • Voltage: 12v
  • Watts: 100w
  • Dim function: Triac
  • IP Rating: IP66
  • Warranty: 3yr
£0
£80.00 - £80.00
£80.00
£80.00 - £80.00
£80.00

The 100W 12V Triac Dimmable Constant Voltage LED PSU is a high-performance and reliable power supply, designed for smooth dimming control with leading-edge and trailing-edge dimmers. Its IP66 rating makes it suitable for both indoor and outdoor use, providing excellent protection against dust and water.

Key Features:

  • Triac dimmable with leading & trailing-edge compatibility.
  • IP66-rated for both indoor and outdoor applications.
  • High efficiency for energy savings and longevity.
  • Factory recommended to operate at a maximum of 95% capacity for extended lifespan.

For compatibility enquiries or bespoke requirements, contact us at sales@weloveleds.co.uk.

Other Info

  • Installation: Suitable for both indoor and outdoor use.
  • Recommended Load: Maximum 95% capacity for extended lifespan.

Technical Details

  • LED Type: Constant Voltage Power Supply
  • Size: 230*70*43mm (L*W*H)
  • Voltage & Wattage: 12V DC, 100W
  • Input Voltage: 200-240VAC
  • Efficiency: Up to 83%
  • Protection Features: Short circuit, overload, overvoltage, over-temperature
  • Cooling Method: Free air convection
  • Fixing Method: Secure mounting required for safe installation
  • Lifespan: Designed for long-term reliability
  • Warranty: 3yr RTB
  • IP Rating: IP66 (dust and water resistant)

Data Sheet
