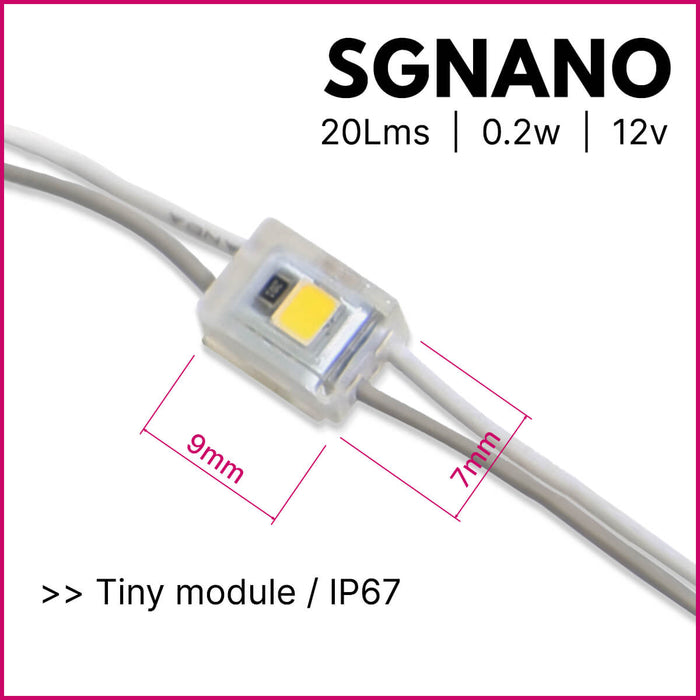

SGNANO LED Module

SGNANO LED Module

Suitable Applications:

- Encapsulate in 30mm Block acrylic letters
- Built up letters with a depth of 30-40mm
👉 Best bang for your buck between 30-40mm 👍

  • Voltage: 12v
  • Watts: 0.2w
  • Lumens: 20lm
  • IP Rating: IP67
  • Warranty: 1yr
£0.40 - £0.40
£0.40
£0.40 - £0.40
£0.40
Colour: Pure White
  • Features
  • More Info
  • Technical

  • SGNANO FEATURES

    -  Ideal for channel letter applications 30-40mm depth
    -  High efficiency LED modules >90Lm/w!!
    -  Available in 1 colour, Pure White (6500k)
    -  12v / 0.2w / 20Lm
    -  Beam angle 120°
    -  IP65
    -  Industry leading 1yr Warranty

    Use these LEDs with our 12v Power Supplies & Dimmers




  • Our SGNANO LED Module is amongst the tiniest of tiny LEDs. Small, robust and waterproof, what more could you want? It will fit into the tightest of spaces without compromising on quality whilst giving even light. The SGNANO module has a beam angle of 120° so works very well in builtups from a return depth of 30mm.

    Available in 2 colours: Pure White (6500K) and Warm White (3000K)


    As with most of our LED modules, it is completely encapsulated for outdoor use and comes with suitable VHB tape already applied. It includes an integrated heat sink to reduce light degradation and colour deviation


    Click here to download our LED Modules Data Guide

    Click here to download SGNANO Datasheet

    The 'SG' brand of LED modules are an efficient sign grade module. They offer the specification you need for most general signage requirements, with rock bottom prices.

    Please Note:
    Whilst we endeavour to never mix batches on the same order, LEDs bought at different times, may have slightly different colours.


  • Spacings

    -  25mm - Full Stretch Centre to centre spacing
    -  30mm - Minimum return depth for even illumination
    -  Row & LED Spacings Guide
        - 30mm Returns <  = 25mm spacings



    Technical

    -  LED:  SMD2835
    -  Size:  9mm x 6.8mm x 4.8mm
    - Quantity: 100 per chain - 40 p/m
    -  Voltage:  12V DC
    -  Wattage:  0.2W per module (at full power)
    -  Colour:  Pure White (6300/7300K)
    -  Lumens:  100LM/w
    -  Fixing:  Pre-mounted adhesive tape to rear
    -  Beam Angle:  120°
    -  Warranty:  up to 1 Year
    -  Rating:  IP65
